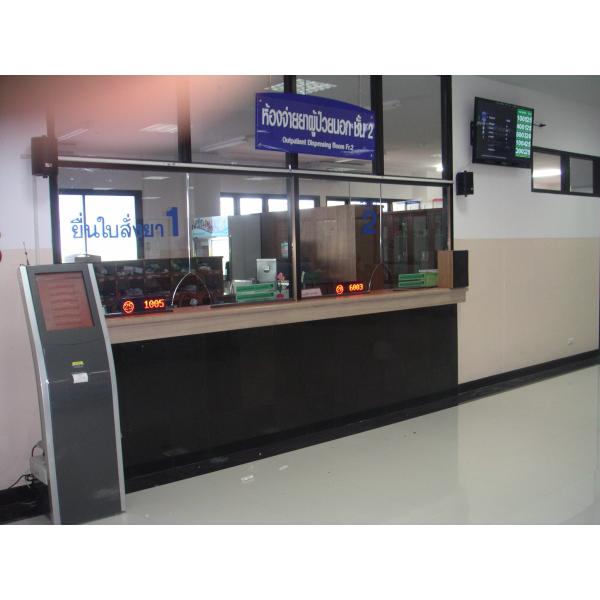

Indoor Multi Language Touch Screen Queue Ticket Machine

Product Categories
Guangzhou ShangXu Technology Co.,Ltd
Contact Now

Indoor Multi Language Touch Screen Queue Ticket Machine

Brand Name : ShangXu

Model Number : SX-QTK171

Certification : CE certificate

Place of Origin : Guangzhou

MOQ : 1 set

Payment Terms : T/T, Western Union

Supply Ability : 500 set per month

Delivery Time : 7 work days

Packaging Details : Standard Export Packing Cartons with Foam and other protection material

Name : queue management system Ticket Dispenser

Language : English/Arabic/French/Russian.etc multiple language supported

Function : Queue management,Smart Queuing Tickets printer

Material : Cold Rolled Steel

Warranty : 1 free year

Printer : 80mm Thermal Printer

Usage : QUEUE MANAGEMENT

Touch screen : IR Touch panel

Os : Windows

Power supply : 110-240V 50HZ/60HZ

Type : wired / wireless

Contact Now

Bank/Hospital/Clinic Touch Screen Wireless que management ticket number token machine

Ticket Dispenser Widely Used in Queue Management System for customer Take a ticket number,as below connection diagram show:

Indoor Multi Language Touch Screen Queue Ticket Machine

Component Of Queue Management System

Indoor Multi Language Touch Screen Queue Ticket Machine

Cabinet All in one cold steel cabinet
LCD Display 17” LCD Display with resolution of 1280*1024
Touch Screen 17” IR Touch Screen
Thermal Printer 80mm Thermal Printer with auto cutter
PC Configuration

CPU: Intel 2.41Ghz

4G DDR3

64G SSD

6 USB port

Windows Operation System installed
Speaker Inbuilt amplifier and 2 speakers
Power Supply 110V-240V

Queue Management System

1.Queue Management System software: control and manage the queues, can realize the function of Multiple language calling and Multiple language translation, and can realize the report statistic function

2.Interface and language and ticket format can be customized, and you can add logo or some other information on the ticket, like time, waiting people, the information can be editable

Indoor Multi Language Touch Screen Queue Ticket Machine

Press Button 21 multiple function button
LCD Display 8 digits lcd display,5 digits showing the queue number of the called customer,3 digits display for number of customer waiting .
Power Supply 5V
Communication Wired or Wireless
Multiple function Button “Call”, “Recall”, “Transfer””Store queue and callback” ”Service Time Reminder” “Clear” and etc.
Indoor Multi Language Touch Screen Queue Ticket Machine
Specifications for LED Counter Display:

8 Digits RED Color LED Counter Display

4 digits display ticket number & 2 digits display for counter number,with Arrow for direction to the counter number

The display format can be customized

110V-240 V Power Supply

Wired or Wireless available

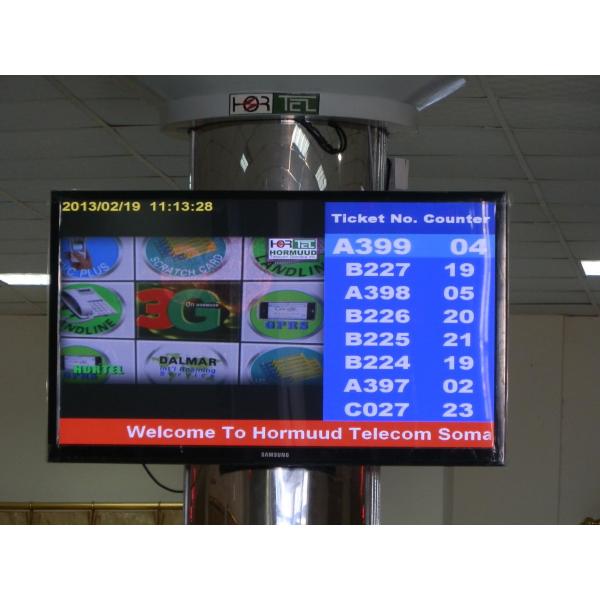

Indoor Multi Language Touch Screen Queue Ticket Machine

Specifications for Player Box :

* CPU: Dual Core 2.4GHZ

Memory 2G, SSD 32G

* OS: windows

*Inbuilt Multimedia and Queue Number Software,can split the screen to many zones,one side can play the advertising video,another side can play the queue information,at the bottom side can display the running text. by using the player box, make the queue number showing on the LCD screen

Indoor Multi Language Touch Screen Queue Ticket Machine

Specifications for Customer Feedback Terminal:

*Services evaluation with four-button and USB port

*In-built speaker, can broadcast the voice, such as "Welcome", "Please comment for service", "Thank you"

*With 4 Star Level to show staff work ability&attitude

*Statistic report available and can send the data to the server, convenience for administer monitor and checking,and can export to Excel and can print it out

Indoor Multi Language Touch Screen Queue Ticket Machine

Indoor Multi Language Touch Screen Queue Ticket Machine

Indoor Multi Language Touch Screen Queue Ticket Machine

Indoor Multi Language Touch Screen Queue Ticket Machine

Indoor Multi Language Touch Screen Queue Ticket Machine

Indoor Multi Language Touch Screen Queue Ticket Machine

If any interest in our Queue Management System product,kindly contact us as below information

Indoor Multi Language Touch Screen Queue Ticket Machine
